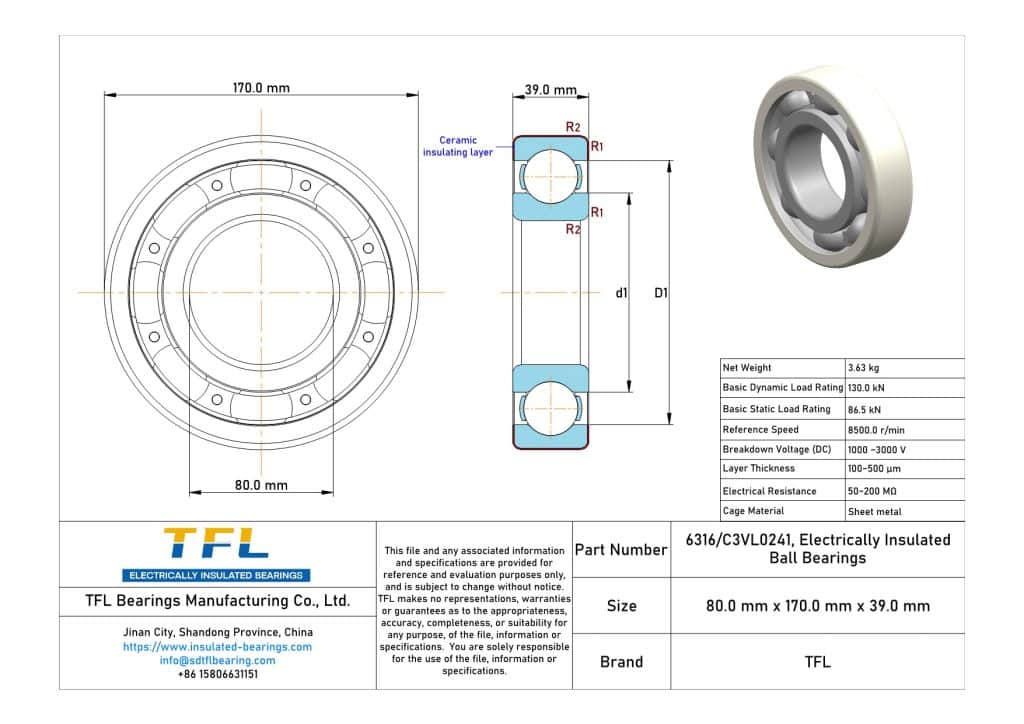

Core Specifications: Dimensions and C3 Clearance of 6316/C3VL0241

Exact Boundary Dimensions (80x170x39mm)

When swapping out a damaged motor bearing, dimensional accuracy is absolutely non-negotiable.

The 6316 series represents a heavy-duty category of deep groove ball bearings designed for maximum load capacity.

Its standard boundary dimensions are universally regulated by strict ISO tolerances.

The bore diameter (inner ring) measures exactly 80mm.

The outer diameter is precisely 170mm.

The total width (or thickness) sits at 39mm.

Any slight deviation in these numbers means the bearing will fail to seat properly inside your motor housing.

For a guaranteed form, fit, and function, our 6316/C3VL0241 equivalent bearings are machined to match these exact geometric specifications down to the micron.

Why C3 Radial Internal Clearance Matters in High-Temp Operations

Here is the deal: standard internal clearance is almost never enough for industrial motor applications.

The “C3” designation indicates that the bearing possesses a radial internal clearance strictly greater than normal (CN).

Why does this specific parameter matter so much?

Variable frequency drive (VFD) motors generate intense internal heat during continuous, high-speed operation.

This rapid temperature rise causes the bearing’s steel rings and rolling balls to physically expand.

If you mistakenly install a standard clearance bearing, this thermal expansion will eliminate the internal gap, causing catastrophic seizure.

The C3 clearance provides the exact mathematical room needed for safe thermal expansion, ensuring fluid rotation without excess friction.

Common Applications in Electric Motors and Industrial Pumps

Protecting Variable Frequency Drive (VFD) Motors from Stray Currents

Variable frequency drives are incredible for energy efficiency, but they introduce a silent killer to your motor system.

This killer is known as high-frequency stray electrical current.

As the VFD operates, it induces a dangerous parasitic voltage directly along the motor shaft.

Without proper insulation, this voltage violently arcs through the rolling elements of standard bearings to reach the ground.

This constant arcing causes microscopic melting, known as electrical fluting or frosting, which destroys the raceway in mere months.

By upgrading your critical systems with premium electrically insulated motor bearings, you completely block this destructive path.

Heavy-Duty Industrial Pump Shaft Support

Industrial pumps demand massive radial load capabilities to handle continuous, high-volume fluid transfer.

The 6300 series is structurally engineered with larger balls and thicker rings for these exact heavy-duty applications.

But wait, why use an electrically insulated version in a pump?

Many modern industrial pumps are directly coupled to massive VFD-driven electric motors.

If the motor bearing fails to block the stray current, the voltage can travel down the mechanical coupling and destroy the pump bearings instead.

Using a drop-in 6316/C3VL0241 replacement guarantees absolute system isolation and prevents catastrophic, unexpected downtime.

Finding a Precise Dimensional Drop-In Replacement

The “Form, Fit, and Function” Checklist

Finding a true equivalent means going beyond just reading the numbers on a box.

A true drop-in replacement must seamlessly integrate into your existing machinery without any modifications to the shaft or housing.

Here is the critical checklist your procurement team must verify before placing an order:

• Boundary Dimensions: Must strictly adhere to the 80x170x39mm ISO standard.
• Internal Clearance: Must be certified C3 to accommodate high-temperature VFD operations.
• Coating Location: The ceramic coating must be on the outer ring (VL0241/J20AA standard).
• Voltage Rating: Must guarantee a minimum breakdown voltage of 1000V DC.

Upgrading to Premium Chrome Steel (GCr15)

The secret to extending the mechanical lifespan of your motor lies in the raw materials.

You cannot put a high-tech ceramic coating on low-grade steel and expect it to survive harsh industrial environments.

Top-tier equivalents utilize ultra-pure GCr15 chrome steel for both the inner and outer rings.

This high-carbon bearing steel undergoes advanced vacuum degassing to eliminate microscopic non-metallic inclusions.

Why does this matter?

Because fewer impurities mean a dramatically higher resistance to rolling contact fatigue.

When combined with the protective deep groove electrically insulated design, this premium steel ensures your motor runs smoother, cooler, and significantly longer.

Coating Thickness vs. Breakdown Voltage Explained

The 1000V DC Standard for Motor Protection

Not all ceramic coatings are created equal in the industrial bearing market.

The global benchmark for true electrical insulation is a guaranteed breakdown voltage of at least 1000V DC.

This rigorous standard ensures that even extreme voltage spikes cannot penetrate the bearing’s protective barrier.

But breakdown voltage alone is not the only metric you must verify.

A true 6316/C3VL0241 replacement must also deliver a minimum electrical resistance of 50 MΩ (Megohms) at 1000V DC.

This massive resistance value acts as an impenetrable wall against destructive stray currents.

Without this certified resistance, your high-performance variable frequency drives will quickly destroy the internal rolling elements.

How Al2O3 (Aluminum Oxide) Coating Stops High-Frequency Currents

The secret behind this incredible electrical resistance is advanced plasma spraying technology.

During manufacturing, a precisely controlled layer of Aluminum Oxide (Al2O3) is permanently bonded to the bearing’s outer ring.

This ceramic layer is incredibly thin, typically measuring between 50 to 100 micrometers (μm) in absolute thickness.

Despite being thinner than a human hair, this microscopic shield effectively blocks high-frequency alternating currents.

After the extreme heat of the plasma spraying process, the ceramic pores are meticulously sealed with a specialized resin.

This critical resin sealing step prevents ambient moisture and industrial contaminants from penetrating the delicate coating.

Even in highly humid environments, this dual-layer protection ensures your high-voltage insulated ball bearings maintain absolute electrical integrity.

Cross-Brand Interchange Guide for 6316 Insulated Bearings

SKF VL0241 vs. FAG J20AA vs. NSK Equivalents

Procurement teams often face massive delivery delays when relying strictly on a single European brand.

Understanding the exact suffix codes allows you to source perfect dimensional and functional equivalents without ever compromising on quality.

The most common industrial requirement is for the outer ring coating to block current from the motor housing.

Here is your definitive cross-reference guide for the 6316 C3 electrically insulated series:

As clearly shown above, an SKF 6316/C3VL0241 is functionally and dimensionally identical to an FAG 6316-J20AA-C3.

Both specify a 6316 deep groove ball bearing with C3 internal clearance and an aluminum oxide coating on the outer ring.

By leveraging this exact interchange knowledge, you can seamlessly bypass supply chain bottlenecks and drastically reduce your maintenance costs.

If your team needs help verifying a specific motor spec, feel free to reach out to our engineering department for a rapid cross-reference analysis.

Special Installation Notes for 6300 Series Insulated Bearings

Handling the Coated Outer Ring (Preventing Chipping)

Here is the absolute most critical rule when handling an electrically insulated bearing.

Treat the dark grey aluminum oxide (Al2O3) coating on the outer ring like fragile glass.

While the internal GCr15 steel is incredibly tough, the microscopic ceramic layer is highly susceptible to impact damage.

Never, under any circumstances, strike the outer ring with a hard steel hammer.

Even a microscopic chip or hairline crack in the resin-sealed ceramic layer will completely destroy the 1000V DC breakdown voltage protection.

If the coating is compromised, stray currents will immediately find that weak point and begin electro-eroding your raceway.

Always keep the bearing in its original anti-rust packaging until the exact moment of installation.

Proper Thermal Mounting Techniques

For a precision component like the 6316 series, cold pressing is a massive risk to both the shaft and the bearing.

The only approved method for mounting these heavy-duty equivalents is controlled thermal expansion.

You must use a professional induction heater to evenly expand the inner ring.

But wait, there is a strict temperature limit you must follow.

Never heat the bearing above 110°C (230°F), as extreme temperatures can permanently alter the C3 internal clearance and degrade the factory lubrication.

Once the bearing reaches the optimal temperature, swiftly slide it onto the motor shaft until it rests firmly against the abutment shoulder.

Hold it tightly in place until it cools and physically grips the shaft, ensuring a perfect, zero-distortion fit for your premium insulated motor bearings.

For more specific engineering details on long-term maintenance, be sure to bookmark our detailed equivalent guide for the 6316 series.

Frequently Asked Questions

What is the exact equivalent to an SKF 6316/C3VL0241?

The direct functional and dimensional equivalent is a 6316 deep groove ball bearing with C3 internal clearance and a specialized aluminum oxide (Al2O3) coating on the outer ring. Brands like FAG use the suffix J20AA to denote this exact same 1000V DC electrically insulated specification.
