The 4 Main Types of Wind Turbine Bearings: A Simple Buyer’s Guide

Are you feeling overwhelmed by the technical jargon when sourcing wind turbine components?

You are definitely not alone.

It is incredibly easy to get lost in the endless spec sheets and complex engineering terms. But here is the good news: you do not need an engineering degree to make smart purchasing decisions.

In this beginner-friendly guide, we break down everything into simple, plain English.

Yaw Bearing: The “Neck” That Faces the Wind

How the Yaw Bearing Helps Catch the Wind

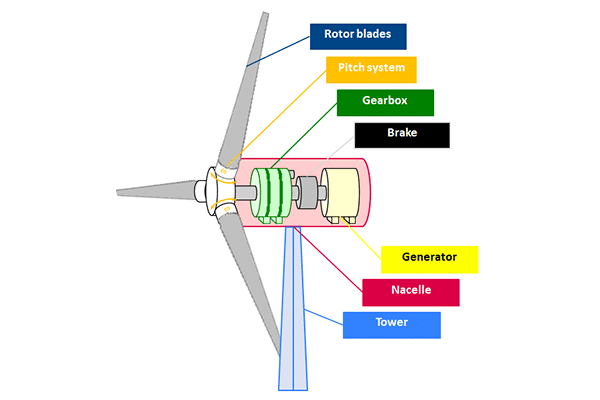

Imagine the wind turbine tower is a body. The nacelle (the large box at the top) is the head.

The yaw bearing is the “neck” connecting them.

Wind direction changes all the time. To make the most electricity, the blades must always face directly into the wind. The yaw bearing allows the entire heavy top section to rotate smoothly to track that wind direction.

Common Types Used in the Market

When sourcing yaw bearings, you will mostly see two main designs.

Each has its own strengths depending on the size of the wind turbine:

• Four-point contact ball bearings: Very common and cost-effective. They are great for handling basic, everyday movements.
• Crossed roller bearings: Built for heavy-duty work. They handle much larger loads and shocks, but they are usually more expensive.

Buying Tip: Why Lubrication Design Matters

Here is the bottom line.

A yaw bearing moves very slowly and sits hundreds of feet up in the air. This makes manual maintenance incredibly difficult.

If the bearing does not have a reliable automatic lubrication system, the gears will dry out and grind together. When buying, ensure the bearing has well-placed grease holes that easily connect to standard automatic greasers.

Pitch Bearing: The “Wrists” Controlling the Blades

The Role of Pitch Bearings in Power Control

If the yaw bearing is the neck, the pitch bearings are the “wrists” of the turbine.

Every single blade is mounted to the rotor hub using a pitch bearing.

What do they do? They rotate the individual blades to adjust their angle against the wind. This controls the speed of the rotor and keeps the turbine safe during severe storms by “braking” the blades.

The Biggest Enemy: Constant Vibration and Wear

Pitch bearings have a very tough, unusual job.

Unlike car wheels that spin around completely, pitch bearings only make tiny back-and-forth movements. At the same time, they constantly vibrate under massive wind pressure.

This creates a specific type of damage called “fretting wear.” Over time, the metal surfaces inside the bearing slowly grind away due to the micro-vibrations.

Why Good Seals Save Your Maintenance Budget

Pitch bearings are directly exposed to the harshest weather conditions.

They face pounding rain, freezing ice, and even salt spray if the turbine is located near the ocean.

If the rubber seal cracks, dirt and water get inside, and the lubricating grease leaks out. A failed seal almost always leads to a ruined bearing. When purchasing, always verify that the manufacturer uses high-quality, multi-lip seals designed specifically for harsh environments.

Main Bearing: The “Spine” Supporting the Heavy Rotor

Handling the Heaviest Load in the Turbine

Think about holding a heavy weight straight out in front of you.

Your arm gets tired very quickly, right?

That is exactly what the main bearing deals with 24 hours a day. It acts as the “spine” of the turbine, carrying the entire combined weight of the rotor hub and all three massive blades. It absorbs all that physical stress so the rest of the machinery behind it can work smoothly.

Single vs. Double Bearing Designs Explained

When you look at turbine specs, you will see two main designs for the main shaft.

• Single Bearing Design: Uses one massive bearing (often a spherical roller bearing). It is cheaper and saves space, but all the stress is concentrated on one point.
• Double Bearing Design: Uses two separate bearings (often tapered roller bearings). It spreads the weight better and lasts longer, making it the standard for newer, larger offshore turbines.

Warning Signs That Your Main Bearing is Failing

A failed main bearing is a buyer’s worst nightmare. Replacing it requires a massive crane and can cost hundreds of thousands of dollars in downtime.

Look out for these early warning signs:

• Unusual vibration data from your Condition Monitoring System (CMS).
• Metal flakes found inside the lubricating grease during routine maintenance.
• A sudden, unexplained increase in the operating temperature of the main shaft area.

Generator vs. Gearbox Bearings: Simple Differences

Gearbox Bearings: Made for Heavy Loads

The gearbox takes the slow rotation of the main blades and speeds it up.

The bearings inside the gearbox face extreme twisting forces (torque). They rotate relatively slowly but must survive sudden, violent shocks every time the wind changes speed abruptly.

Generator Bearings: Built for High Speed and Precision

Once the gearbox speeds up the rotation, it connects to the generator to actually make the electricity.

Generator bearings are the fastest-moving bearings in the entire turbine. They do not carry much weight, but they must spin at incredibly high speeds (often over 1,500 RPM) without overheating.

Which Bearing Matches Your Specific Needs?

Choosing between different internal clearances, cage materials, and lubrication types can be tricky for procurement teams.

If you are upgrading an older turbine or sourcing parts for a new fleet, matching the exact specs is critical to avoiding premature failure. For a full breakdown of specs and our complete catalog, check out our complete wind turbine bearing hub to find the exact match for your project.

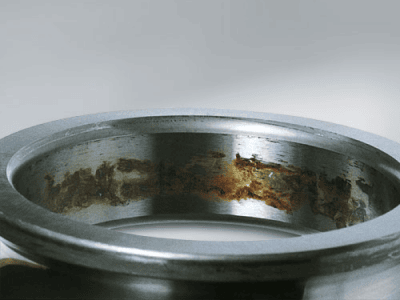

Why Generator Bearings Suffer from Electrical Damage

What is “Stray Current” in Simple Terms?

Generator bearings have a unique enemy that the yaw, pitch, and main bearings do not face: electricity.

Because they sit right inside the electrical generator, “stray currents” can accidentally leak into the bearing. Instead of flowing through the wires, the electricity arcs directly through the steel rolling elements and the raceway.

This creates thousands of tiny lightning strikes inside the bearing. Over time, it melts the steel and creates washboard-like lines called “fluting,” which quickly destroys the bearing.

The Easy Fix: Electrically Insulated Bearings

How do you stop this electrical damage?

The most common and cost-effective solution is using Electrically Insulated Bearings.

These bearings look exactly like normal ones, but the outer ring (or inner ring) is coated with a special layer of aluminum oxide. This coating acts like a shield, stopping the stray currents from entering the bearing in the first place.

Are Ceramic Bearings a Good Alternative?

Another option is Hybrid Ceramic Bearings.

Instead of steel, the rolling balls inside the bearing are made of ceramic material. Since ceramic does not conduct electricity at all, there is zero risk of fluting damage.

However, ceramic bearings are significantly more expensive. For most standard wind turbines, insulated bearings offer the best balance of protection and price.

Jessica’s Cheat Sheet: Quick Guide for Buyers

The 4 Main Bearings at a Glance

To make things even easier, our contributor Jessica has created a quick summary table.

Save this cheat sheet for your next procurement meeting to quickly identify which bearing you are dealing with.

Quick Checklist for Your Next Purchase

• Double-check the sealing quality, especially for pitch bearings.
• Confirm the lubrication method (manual vs. automatic).
• Ask your supplier if insulated bearings are needed for your generator specs.

Frequently Asked Questions

Which wind turbine bearing carries the most weight?

The main bearing carries the most weight. It supports the entire weight of the rotor hub and the massive blades, transferring that load safely to the main frame of the turbine.

Why do pitch bearings fail so often?

Pitch bearings are constantly making small, vibrating movements while under heavy wind pressure. This causes a specific type of damage called fretting wear. They are also exposed to harsh weather, which can ruin their seals.

Do all generator bearings need electrical insulation?

Not all of them, but it is highly recommended. Stray electrical currents in generators can cause “fluting” damage to standard steel bearings. Using insulated or ceramic bearings prevents this costly issue.
