The 6312/C3 and 6312/C3VL0241 are identical in size (60x130x31mm). The only difference is that the 6312/C3VL0241 has an aluminum oxide ceramic coating to block stray electrical currents from VFDs. Choose the standard 6312/C3 for direct-on-line motors, and the VL0241 for inverter-fed motors to prevent electrical damage.
Are you tired of replacing motor bearings on the non-drive end over and over again?
As factories worldwide upgrade to Variable Frequency Drives (VFDs) for energy savings, maintenance engineers are facing a frustrating new problem. The failure rate of bearings on the motor’s cooling fan side has skyrocketed.
For medium to large motors (IEC frame sizes 250, 280, and 315), the most common non-drive end bearing is the 6312. Buyers and tech teams are often stuck making a tough choice: Do you keep using a cheap standard 6312/C3, or spend big money upgrading to a ceramic-coated insulated 6312/C3VL0241?
In this guide, we will break down exactly how to make the right choice. You will learn:
- The fatal electrical difference between the two models.
- When a standard bearing is enough, and when you must upgrade.
- The real-world signs of electrical bearing damage.
- How to calculate the true cost of downtime.
The Twin Brothers: 6312/C3 VS 6312/C3VL0241
Looking at the mechanical specs, these two are identical twins that are 100% interchangeable.
Both have a 60mm bore, a 130mm outer diameter, and a 31mm width. They even share the exact same “C3” large internal clearance.
But when you look closer, there is one fatal difference: their ability to block electricity.
| Feature | Standard 6312/C3 | Insulated 6312/C3VL0241 (SKF) / J20AA (FAG) |
|---|---|---|

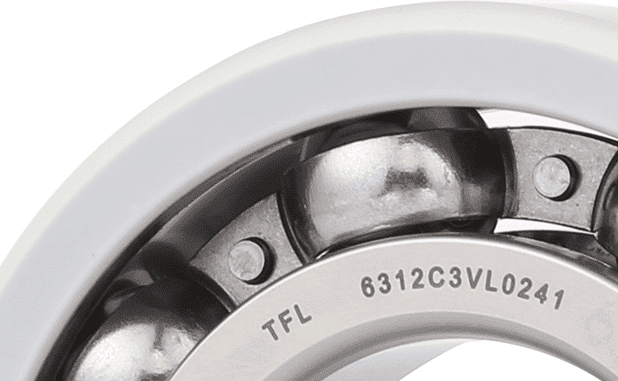

| Appearance | Standard raw steel finish | Light gray or black aluminum oxide ceramic coating on the outer ring |
| Load & Speed | Dynamic: 85.2 kN / Static: 52 kN | Exactly the same (the coating does not alter physical limits) |
| Conductivity | Excellent conductor (current easily passes through) | Electrical Insulator (blocks current flow) |
| Electrical Resistance | None (cannot stop high-frequency shaft currents) | Extremely High (withstands 1000V DC breakdown voltage) |
| Industry Names | Standard Deep Groove Ball Bearing | INSOCOAT Bearing / Ceramic Coated Bearing |
Jessica Jia’s Technical Tip: When inspecting an insulated bearing, don’t just look at the color. A true ceramic coating applied via plasma spray will have a slightly rough, matte texture. If the outer ring feels perfectly smooth and glossy like standard paint, it will not withstand the voltage spikes from a VFD and will burn out quickly.
The Selection Divide: When to Use 6312/C3 vs. VL0241
When it comes to bearing selection, there is no such thing as an absolutely “bad” choice. It is all about applying the right cure for the right disease.
Scenario A: Stick with the Standard 6312/C3
Are you running a traditional Direct-On-Line (DOL) motor?
If your motor operates without an inverter (no VFD speed control) and has no strong magnetic interference nearby, the standard 6312/C3 is perfectly fine. Its mechanical strength and lubrication are more than enough to guarantee years of stable, smooth operation.
In this specific case, forcing an upgrade to an insulated bearing is simply a waste of your maintenance budget (performance overcapacity).
Scenario B: Mandatory Upgrade to 6312/C3VL0241

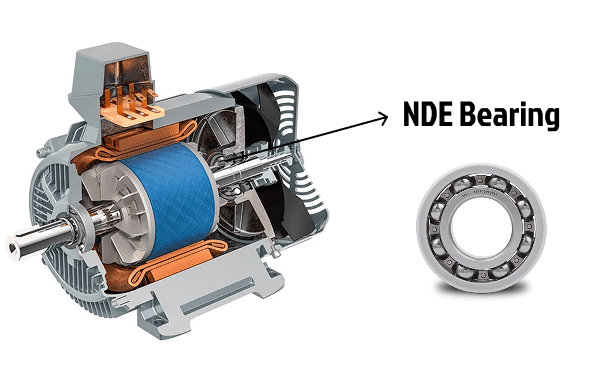

If your equipment is connected to a Variable Frequency Drive (VFD), you must equip the Non-Drive End (NDE) with an insulated 6312 bearing. This is the only reliable way to cut off the damaging shaft current loop.
This upgrade is non-negotiable in the following core applications:
- Mid-Power VFD Motors: Operating in the 55kW to 200kW (approx. 75HP to 270HP) range. This is the “danger zone” for electrical fluting. It represents the most widely used power segment in heavy industry and covers 80% of routine demands.
- Harsh Industry-Specific Equipment:
- Petrochemical & Mining Explosion-Proof Motors: Driving massive pumps and fans. A single spark caused by electrical breakdown here can result in catastrophic consequences.
- Paper & Textile Machinery: High-frequency motors requiring highly precise speed regulation.
- Wind Turbines: Yaw motors or the excitation end of smaller turbine generators.
- Rail Transit: Auxiliary power motors for light rail and trams (such as air compressors within the traction system).
Cracking the Code: 6312 Insulated Bearing Suffixes by Brand
One of the biggest headaches for purchasing managers is deciphering bearing part numbers.
The suffix “VL0241” is actually a specific code used by SKF. If your equipment manual calls for an FAG or NSK insulated bearing, the base number (6312) stays the same, but the suffix changes completely.
To help you find exactly what you need without the confusion, here is a quick cross-reference chart for the 6312 insulated bearing across major global brands:
| Brand | Insulated 6312 Part Number Equivalent |
|---|---|
| TFL | 6312/C3VL0241 |
| SKF | 6312/C3VL0241 |
| FAG | 6312-J20AA-C3 |
| NKE | 6312-M-C3-SQ77 |
| NSK | 6312HDY2C3 |
| NTN | 7MC3-6312C3 |
Jessica Jia’s Technical Tip: No matter which brand suffix you see on your motor’s nameplate, they all refer to the same physical dimensions (60x130x31mm) and the same aluminum oxide coating on the outer ring. Our TFL 6312/C3VL0241 is a 100% drop-in replacement for any of the codes listed above.
Beyond the Standard: Brass Cages and C4 Clearance Upgrades
Standard 6312 insulated bearings usually come with a steel cage and C3 internal clearance.
However, industrial environments are rarely “standard.” Based on years of supplying heavy industry, we know that some applications demand tougher specifications. As a premier supply chain integrator, we offer targeted upgrades to ensure your VFD motors survive the harshest conditions:
- Machined Brass Cages (M Suffix): Does your motor experience severe vibrations, heavy shock loads, or sudden acceleration? A machined brass cage offers superior strength and better friction characteristics under poor lubrication compared to standard steel cages.
- C4 Internal Clearance: If your motor runs in an extremely hot environment (like a steel mill or a continuous casting plant), the shaft will expand significantly. Upgrading from C3 to a larger C4 clearance prevents the bearing from seizing up due to extreme thermal expansion.
Tell us your specific operating environment, and we will supply the exact cage and clearance combination your motor actually needs.
The Total Cost of Ownership (TCO) Reality Check
What happens if you try to save a few bucks by putting a standard 6312/C3 in a VFD motor?
Disaster.
High-frequency stray currents act like tiny lightning bolts. They blast right through the ultra-thin lubrication film inside the bearing, creating microscopic electrical sparks.
If you have ever opened a failed motor, you know the smell. Within just 3 to 6 months, the grease cooks into a blackened, carbonized paste.
Worse, those sparks literally chew into the steel raceway. This creates a severe “washboard” or fluting pattern. You will hear a high-pitched, screaming noise, followed by intense heat, and ultimately, a locked rotor.
Yes, the upfront price of a 6312/C3VL0241 is higher. But it buys you 2 to 3 years of extended life. Think about the Total Cost of Ownership (TCO). You are saving on:
- Unplanned Downtime: Losing tens of thousands of dollars per hour when the production line suddenly stops.
- Heavy Maintenance Costs: The massive labor and crane rental fees needed to tear down and rebuild a heavy 315-frame motor.
The 100% Perfect Alternative (Without the Brand Markup)
We know the reality of the current market.
Original SKF 6312/C3VL0241 or FAG 6312-C3-J20AA bearings carry a massive premium. Plus, they often come with frustratingly long lead times that leave your maintenance department stranded.
But you do not have to pay for that brand markup.
As a premier supply chain integrator, we provide a high-performance alternative that solves your electrical fluting problem without breaking the budget.
- 100% Drop-In Replacement: Exact 60x130x31mm dimensions. Just install it straight into your existing housing—no modifications needed.
- Global-Standard Coating Tech: We utilize mature plasma thermal spraying technology. The ceramic layer is dense, durable, and completely blocks VFD shaft currents.
- Ultimate Value & Fast Delivery: Cut out the brand premium and dramatically lower your TCO. We maintain robust ready-to-ship inventory to respond to your urgent needs.
As you upgrade to modern VFD controls, do not let one wrong standard 6312/C3 bearing destroy a wildly expensive motor. Upgrading to a ceramic-coated bearing is the ultimate fix.
Field Update: 6312/C3VL0241 Shipment to the United States (May 2026)

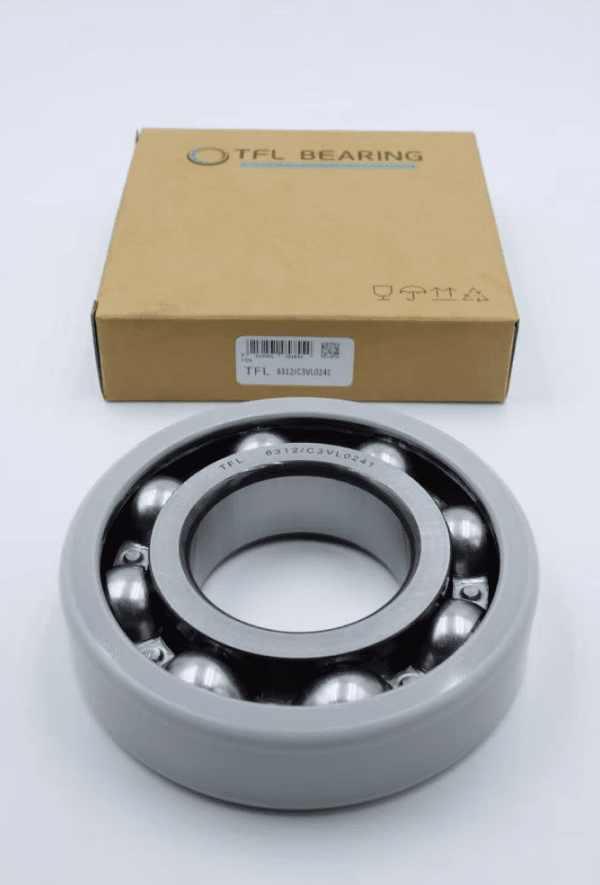

At TFL, we don’t just talk about quality—we deliver it globally. In May 2026, we successfully fulfilled a critical order for a manufacturing client based in the United States.
Jessica Jia’s Dispatch Note: For this specific US shipment, our team conducted a 100% check before packing. Each 6312/C3VL0241 bearing was verified to ensure the ceramic coating provides a complete barrier against high-frequency shaft currents.
By coordinating our local inventory and international logistics, we ensured that these high-precision insulated bearings reached the US facility in record time. We used vacuum-sealed, moisture-proof packaging to protect the sensitive ceramic layers during the long-distance flight.
*Note: This case is currently being monitored for long-term performance data, and we will update this section with maintenance logs soon.
Frequently Asked Questions
Can I use a standard 6312/C3 with a VFD if I ground the motor properly?
No. While grounding the motor frame is necessary for safety, it does not stop the high-frequency currents generated by the VFD from traveling down the shaft and jumping through the bearing. You still need an insulated bearing like the 6312/C3VL0241 on the non-drive end to break the circuit.
Does the ceramic coating on the 6312/C3VL0241 change how I install it?
The installation process is exactly the same as a standard bearing. However, you must handle it with care. Do not hit the outer ring directly with hard metal tools, as severe impact could chip the protective aluminum oxide ceramic coating.
What does the “C3” mean in both bearing part numbers?
The “C3” indicates that the bearing has an internal clearance larger than standard. This allows for thermal expansion during high-speed operation, which is critical for the high running temperatures commonly found in industrial electric motors.
