Electrical Protection: Breakdown voltage up to 3000V. Blocks stray currents to prevent electrical corrosion.
Motor Current Protection: Helps reduce bearing current damage, electrical erosion, and fluting in motor applications.
Alumina Coating: Breakdown voltage up to 3000V and resistance up to 200 MΩ.
Ample Stock: A stable supply chain and sufficient inventory enable us to fulfill most orders.

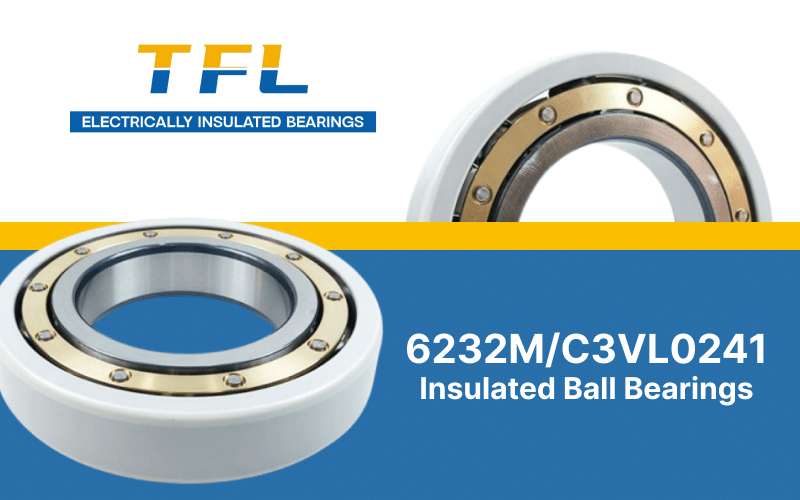

TFL 6232M/C3VL0241 is interchangeable with SKF and FAG equivalents based on boundary dimensions, clearance class, and outer-ring insulation structure, making it suitable for INSOCOAT equivalent charts and SKF/FAG interchange lists. This model measures 160 mm × 290 mm × 48 mm, has C3 radial internal clearance, and uses a brass cage. Each order can be checked by dimensions, dielectric performance, coating condition, and visual inspection, giving engineers and buyers a clear route for direct replacement review. Final selection should still be verified against operating conditions, fit arrangement, speed, load, and the complete original bearing suffix.
| SKF | FAG |
|---|---|
| 6232M/C3VL0241 | 6232-M-J20AA-C3 |
TFL helps industrial buyers, maintenance teams, and distributors source electrically insulated bearings with model consolidation, interchange checking, and pre-shipment inspection. For large-size insulated deep groove ball bearings such as 6232M/C3VL0241, we focus on dimensions, clearance, cage type, insulation structure, load ratings, and order quantity to reduce mistakes caused by suffix differences. TFL supports OEM/ODM, private-label packaging, small-batch orders, and consolidated shipping for maintenance, project procurement, and alternative-brand sourcing. The listed ROHS and REACH status is Compliant / Compliant; related quality documents can be confirmed with the order.
Outer-ring insulation VL0241 — standard deep groove bearing dimensions for direct replacement.
Brass cage — suitable for large-size motor and generator bearing positions.
High dielectric strength — breakdown voltage 1000–3000 V DC; layer thickness 100–500 μm; resistance 50–200 MΩ.
TFL 6232M/C3VL0241 electrically insulated deep groove ball bearing is used in VFD motors, large industrial motors, generators, industrial pumps, fans, compressors, rail traction motors, and wind turbine systems. Its outer-ring insulation helps block shaft-current paths and reduce the risk of electrical erosion, grease degradation, and abnormal vibration. For large motor and generator duty, the brass cage, C3 clearance, and 212 kN dynamic load rating support load and temperature-rise requirements under continuous operation. Final application should be confirmed by load, speed, temperature rise, fit arrangement, and insulation level.
TFL electrically insulated deep groove ball bearings, such as 6232M/C3VL0241, are suitable for large VFD-driven motor and generator systems, including Siemens 1LE0001 and ABB M3BP series equipment types. In these systems, induced shaft currents may cause fluting, electrical erosion, and lubricant deterioration on bearing raceways. TFL uses an alumina ceramic insulation coating with 1000–3000 V DC dielectric protection while keeping standard mounting dimensions, making it a suitable alternative selection to SKF INSOCOAT and FAG J20AA types. This is an application-type reference, not an installed case.

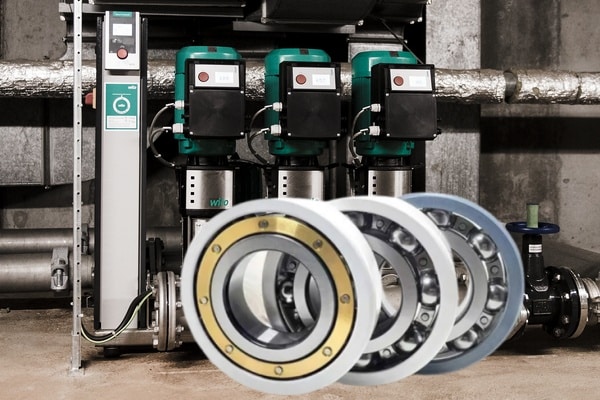

TFL electrically insulated bearings, such as 6232M/C3VL0241, are recommended for VFD-controlled equipment types including Grundfos CR multistage pumps, KSB Eta centrifugal pumps, Siemens industrial fans, and large compressor motors. These systems often operate continuously under humidity changes, vibration, and variable-speed conditions, while VFD-related electrical interference can increase bearing failure risk. The outer-ring insulation of 6232M/C3VL0241 helps block current paths, while C3 clearance and the brass cage suit the running requirements of larger motor bearing positions. This is an application-type reference, not an installed case.
In wind power and rail traction systems, TFL electrically insulated bearings, such as 6232M/C3VL0241, 6320M/C3VL0241, and 6324M/C3VL0241, can be considered for equipment types such as Vestas V90, Goldwind GW121/2500, Siemens Gamesa 2.3 MW turbines, and rail traction motors. These systems often face variable speed, humidity, impact load, and stray-current issues, requiring stable insulation performance, cage strength, and dimensional interchangeability. TFL’s insulation layer thickness is 100–500 μm, and electrical resistance is 50–200 MΩ, making it a candidate model for service replacement and procurement comparison. This is an application-type reference, not an installed case.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
