Electrical Protection: Breakdown voltage up to 3000V. Blocks stray currents to prevent electrical corrosion.
MRO Replacement Ready: Suitable for maintenance, repair, and industrial motor bearing replacement projects.
Anti-Fluting Protection: Helps protect motor bearings from electrical pitting, fluting, and premature failure.
Low MOQ Available: Flexible MOQ support for sample orders, motor repair, and small-batch replacement needs.

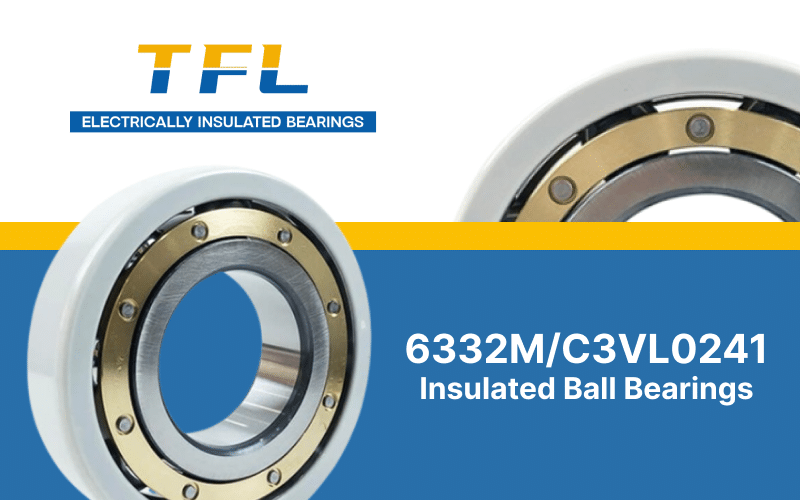

TFL 6332M/C3VL0241 is interchangeable with SKF and FAG equivalents based on boundary dimensions, C3 clearance, and outer-ring insulation structure, making it suitable for INSOCOAT equivalent charts, SKF/FAG interchange lists, and replacement selection for inverter-driven motor applications. This model measures 160 mm × 340 mm × 68 mm and uses a brass cage, fitting replacement review for large inverter motors and industrial drive equipment. Each order can be checked by dimensions, dielectric performance, coating condition, clearance, and visual inspection, giving engineers and buyers a clear route for direct replacement confirmation. Final selection should still be verified against the complete original suffix, fit arrangement, temperature rise, speed, load, and insulation location.
| SKF | FAG |
|---|---|
| 6312/C4VL0241 | 6312-J20AA-C4 |
TFL helps industrial buyers, motor repair teams, and distributors source electrically insulated bearings with model consolidation, interchange checking, and pre-shipment inspection. For large VL0241 outer-ring insulated bearings used in inverter motor applications such as 6332M/C3VL0241, we focus on dimensions, clearance, cage type, insulation location, load ratings, and the original brand suffix to reduce model-selection errors in replacement purchasing. TFL supports OEM/ODM, No MOQ, small-batch orders, volume supply, and Fast Delivery coordination for inverter motor spare parts, project purchasing, and alternative-brand sourcing. The listed ROHS and REACH status is Compliant / Compliant; related quality documents can be confirmed with the order.
Bearing for inverter motors — outer-ring insulation helps block shaft-current paths in VFD-driven systems.
Outer-ring insulation VL0241 — ceramic-coated outer ring for direct replacement review.
Brass cage — suitable for large-size motor, generator, and heavy-duty drive applications.
TFL 6332M/C3VL0241 electrically insulated deep groove ball bearing is used in inverter motors, VFD motors, large industrial motors, generators, industrial pumps, fans, compressors, rail traction motors, and wind turbine systems. Its outer-ring insulation helps block shaft-current paths in variable-frequency drive systems and reduce the risk of electrical erosion, grease degradation, and abnormal vibration. C3 clearance and the brass cage fit common load and continuous-duty conditions in large motor bearing positions. Final selection should be confirmed by the original bearing number, clearance requirement, load, speed, temperature rise, and insulation location.
TFL electrically insulated deep groove ball bearings, such as 6332M/C3VL0241 and 6332M/C4VL0241, are suitable for large inverter motors and VFD-driven motor equipment types, including Siemens 1LE0001 and ABB M3BP series. In these motors, inverter-driven operation may generate induced shaft currents, causing electrical erosion, fluting damage, and lubricant deterioration on bearing raceways. TFL 6332M/C3VL0241 uses an outer-ring alumina ceramic insulation structure, provides 1000–3000 V DC dielectric protection, and keeps standard deep groove bearing mounting dimensions, making it a suitable alternative selection to SKF INSOCOAT and FAG J20AA types.

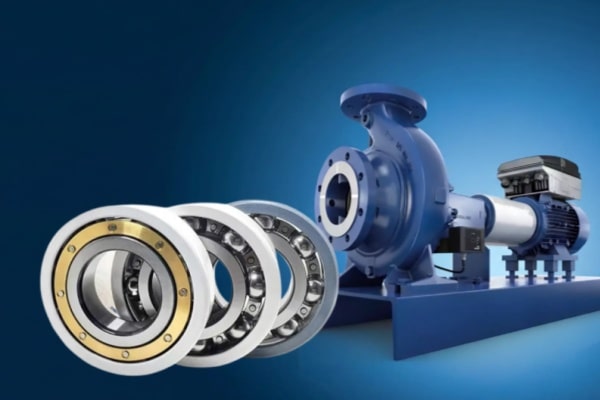

TFL electrically insulated bearings, such as 6332M/C3VL0241, are recommended for VFD-controlled equipment types including Grundfos CR multistage pumps, KSB Eta centrifugal pumps, Siemens industrial fans, and large compressor motors. These systems often operate under continuous duty, humidity changes, vibration, and frequent speed variation, while inverter-related electrical interference can increase bearing erosion risk. The outer-ring insulation layer of 6332M/C3VL0241 helps block current paths, while C3 clearance and the brass cage support replacement review for large motor bearing positions.

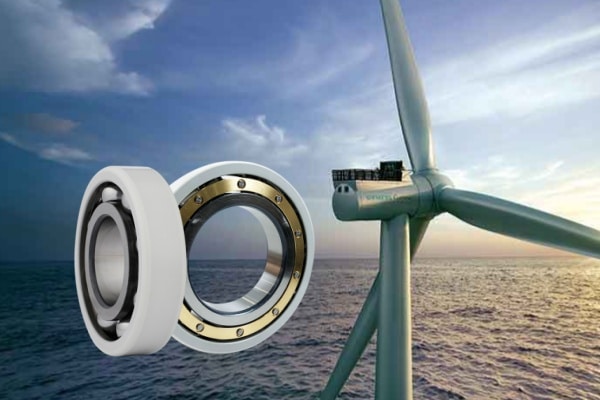

In large generators, wind power systems, and heavy-duty inverter drives, TFL electrically insulated bearings, such as 6332M/C3VL0241, 6332M/C4VL0241, and 6324M/C3VL0241, can be considered for diesel generator sets, industrial generators, Vestas V90, Goldwind GW121/2500, Siemens Gamesa 2.3 MW turbines, and large drive motors. These systems often face variable-speed operation, temperature rise, humidity, impact load, and stray-current issues, requiring stable insulation performance, proper clearance selection, and dimensional interchangeability for inverter motor bearing or generator bearing positions. TFL 6332M/C3VL0241 uses an outer-ring insulation structure with 100–500 μm coating thickness and 50–200 MΩ electrical resistance, making it a candidate model for inverter motor repair, generator bearing replacement, wind-turbine service, and alternative-brand cost comparison.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
