Reliable Quality: Compliant with ISO 9001 and REACH standards. The production process is fully traceable.
Interchangeable: Compatible with SKF/FAG/NKE models for a perfect replacement.
Plasma Spray Technology: Creates a coating with excellent wear and heat resistance.
Variety of Types: Both C3/C4 and brass retainers, stamped steel retainers, are available for selection.
TFL 6330M/C4VL2071 is a direct functional equivalent to equivalent models from premium global brands like SKF and FAG in dimensions, precision, and dielectric properties. Its “VL2071” (SKF) and “J20C” (FAG) suffixes denote the industry-standard inner-ring insulation solution, while the C4 clearance guarantees safe replacement in generator bearings operating under limit conditions. Comprehensive mechanical tolerance and insulation impedance testing prior to delivery ensures reliable interchange performance.
| SKF | FAG | NKE |
|---|---|---|
| 6330M/C4VL2071 | 6330-M-J20C-C4 | 6330-M-C3-SQ77E |
TFL is an integrated supplier focused on the field of industrial electrically insulated bearings. We are committed to delivering high-standard, highly reliable insulated rolling bearings to the global drive sector through scientific supply chain verification and strict ISO 9001 quality monitoring. Relying on a flexible zero-MOQ ordering model, rapid warehouse delivery, and expert engineering suggestions, TFL fully supports equipment engineers and maintenance supervisors in completing spare parts replacement and cost optimization in minimal time.
Machined Brass Cage (M) — High-strength mechanical design, ideal for heavy vibration and extreme shock load conditions.
Inner Ring Insulation (VL2071) — Uniform plasma-sprayed alumina coating resisting up to 3000 V DC.
Heavy-duty 63 Series (150mm Bore) — Designed for heavy industrial shafts with superior radial load capacity.
The TFL 6330M/C4VL2071 premium insulated bearing is widely supplied for extreme-temperature, heavy-load, and high-vibration VFD drive systems. Typical target applications include multi-megawatt doubly-fed and direct-drive wind turbine generators, large-scale high-speed rail traction drive assemblies, heavy-load paper pulp refiner drives, and heavy-duty steel plant continuous casting rollers.

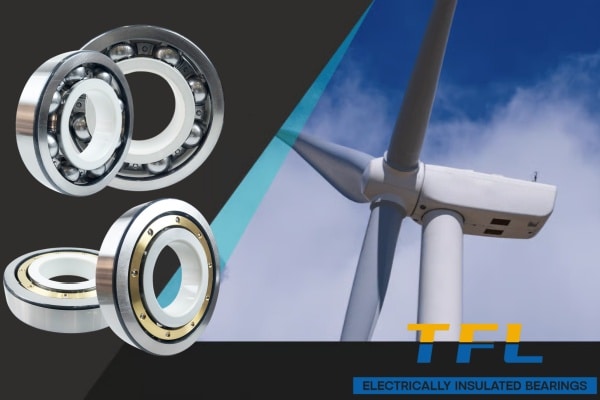

TFL 6330M/C4VL2071 is suitable for Vestas or Goldwind 3.6MW to 6.5MW wind turbine generator systems. Under long-term variable-speed wind operations, generators generate intense heat due to massive loads. This model provides ample thermal compensation with its C4 clearance, and utilizing its 3000V inner-ring alumina ceramic barrier, effectively reduces the risk of electrical erosion caused by high-frequency inverter leakage, making it a premium solution for wind farm maintenance.
In the maintenance of high-speed rail and intercity transit powertrains, the TFL 6330M/C4VL2071 is recommended for traction drive systems from brands like Alstom or Siemens. The large-bore, machined brass cage effectively absorbs intense vibrations under high acceleration, while the C4 clearance and inner-ring insulation prevent lubricant failures caused by braking temperature spikes and power surges, ensuring smooth train operations.
For heavy-duty high-speed paper machinery dryer drive systems from brands like Valmet or Voith, the TFL 6330M/C4VL2071 provides reliable safeguarding. In extremely harsh environments of high heat (exceeding 150°C) and humidity, its C4 clearance completely eliminates thermal expansion stress. Combined with high-hardness inner-ring electromagnetic insulation, it successfully prevents mechanical stoppages caused by discharge-related raceway scratches and electrical interference.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
