Superior Insulation: Prevents electrical erosion caused by stray currents in VFD-driven motors.
Ceramic Coating Technology: Advanced plasma-sprayed outer ring ensures a dielectric strength of 1000-3000 V DC.
Interchangeable Precision: 100% dimensional compatibility with major brands like SKF, FAG, and NKE.
Versatile Cage Options: Available in stamped steel or machined brass (M suffix) to suit specific vibration and speed requirements.
For industrial procurement managers seeking alternatives to premium-priced majors, TFL provides a strategic solution for the 6322/C3VL0241 model. While maintaining strict adherence to ISO dimension standards and equivalent dielectric strength properties found in SKF or FAG counterparts, TFL offers a distinct advantage in supply chain efficiency. Buyers benefit from significantly reduced lead times, flexible Minimum Order Quantities (MOQ) that accommodate maintenance schedules, and a cost structure that lowers the Total Cost of Ownership (TCO) without compromising on the protection against electrical erosion.
| TFL | SKF | FAG | NKE | NSK | NTN |
|---|---|---|---|---|---|
|
6322/C3VL0241
|
6322/C3VL0241
|
6322-J20AA-C3
|
6322-M-C3-SQ77
|
6322HDY2C3
|
7MC3-6322C3
|
TFL utilizes advanced atmospheric plasma spraying (APS) technology to apply the aluminum oxide coating, followed by a unique sealing process that ensures the coating remains effective even in humid environments. Unlike generic suppliers, every batch of TFL insulated bearings undergoes rigorous ohmic resistance testing and dimensional verification.

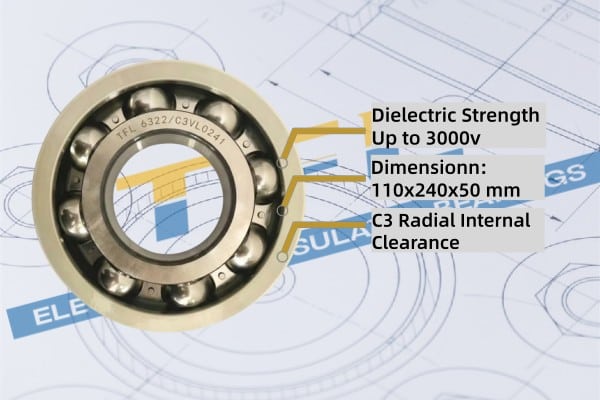

Dielectric Strength: The outer ring is coated with an aluminum oxide layer (approx. 100µm) providing insulation up to 3000V DC.
Dimension Precision: Exact 110x240x50 mm, manufactured to P6/P5 tolerance classes for seamless retrofitting.
C3 Radial Internal Clearance: Specifically designed for large motors to prevent seizing under high thermal gradients.
The 6322/C3VL0241 is critical in medium-to-large electric motors controlled by frequency converters (VFDs). In these systems, high-frequency switching creates common-mode voltages that discharge through the bearings, causing electrical erosion (fluting). The 6322 insulated bearing cuts this current path, protecting the rolling elements.
6322/C3VL0241 is frequently deployed in the non-drive end (NDE) of AC traction motors used in electric locomotives and EMUs. For instance, specific series of Siemens traction motors utilized in light rail and subway systems often require a 6322-sized insulated bearing to handle both the mechanical radial loads and the stray currents generated by the traction inverters. The insulation prevents the “washboarding” effect on raceways, which is a leading cause of premature motor failure in rail transit.
Wind turbine generators, particularly doubly-fed induction generators (DFIG), are prone to bearing currents. The 6322/C3VL0241 serves as a vital component in the generator assembly, often on the non-drive side of smaller commercial turbines or auxiliary motors within larger 2MW+ nacelles. By installing this replacement for SKF 6322/C3VL0241, operators of Vestas or GE wind turbines can prevent the electrical pitting that leads to catastrophic generator bearing failure, thereby reducing costly up-tower repairs.
In water treatment and petrochemical plants, large centrifugal pumps driven by ABB M3BP or WEG W22 series motors (specifically frame sizes around 280-315 which utilize heavy-duty bearings) often employ the 6322/C3VL0241. When these motors are retrofitted with VFDs to save energy, the standard bearings often fail within months due to EDM currents. Upgrading to the TFL 6322 insulated bearing on the non-drive end effectively blocks the current loop, ensuring the pump system meets its 40,000+ hour service life expectancy.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
