Plasma Spray Technology: Creates a coating with excellent wear and heat resistance.
Competitive Pricing: Factory-direct sales allow us to offer prices below the market average.
Reliable Quality: Compliant with ISO 9001 and REACH standards. The production process is fully traceable.
Standard Dimensions: Built to international standards for direct replacement of same-model bearings.

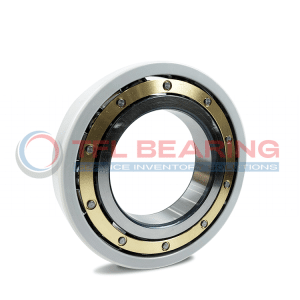

TFL 6224M/C4VL0241 perfectly achieves direct replacement for equivalent insulated bearings from international brands like SKF and FAG in terms of dimensions (120x215x40mm), brass cage design, and C4 clearance standards. All delivered products pass 100% dielectric and dimensional precision testing, ensuring “plug-and-play” installation and a reliable lifespan in complex, high-heat, and high-vibration VFD systems across paper, metallurgy, and chemical industries.
| SKF | FAG | NKE | NSK | NTN |
|---|---|---|---|---|
|
6224M/C4VL0241
|
6224-M-J20AA-C4
|
6224-M-C4-SQ77
|
6224HDY2C3
|
7MC3-6224C3
|
Meeting the demanding requirements for a 120mm large-bore specialized bearing that simultaneously features a brass cage, C4 extra-large clearance, and an anti-erosion coating is a rigorous task. Relying on a robust premium industrial transmission supply chain network and an ISO 9001 certified quality control system, TFL seamlessly integrates advanced imported alumina plasma spraying processes with heavy machinery standards. We provide not only high-performance anti-erosion products rivaling top global brands but also professional technical support from our engineering team. With rapid-response stock delivery and a No MOQ policy, TFL is dedicated to helping global industrial clients eliminate lead-time risks during urgent maintenance, achieving significant cost savings.
C4 Radial Internal Clearance — Essential for environments with extreme temperature gradients and massive heat transfer.
Machined Brass Cage (M) — Provides extreme resistance to heavy vibration and ensures structural integrity.
Outer-Ring Ceramic Insulation — Breakdown voltage up to 3000 V DC to reliably stop high-frequency leakage currents.
TFL 6224M/C4VL0241 is exclusively designed for purgatory-level industrial conditions simultaneously featuring “ultra-heavy loads, extreme temperatures, severe vibrations, and complex high-frequency interference.” Typical applications encompass main drive motors for hot strip mills in steel plants, high-temperature dryer drives in paper machinery, high-temp centrifugal exhaust fans in large chemical plants, and high-pressure pumps in extreme heavy-industry environments. It is a critical safeguard for heavy-asset enterprises to prevent unplanned downtime of core equipment under severe thermodynamic conditions.
In VFD main drive motors (like large units built by Siemens and ABB) for hot rolling lines in steel plants, equipment is constantly subjected to immense mechanical shocks from billet gripping and high radiant heat. The robust brass cage of TFL 6224M/C4VL0241 effectively resists impacts, while the C4 extra-large clearance safely accommodates internal expansion caused by heat surges. Its stable ceramic insulation prevents “arcing” erosion on the bearing raceways by parasitic currents, acting as a standard solution for the long-term operation of metallurgical equipment.
In the dryer sections of large paper machines by Valmet and Voith, drive motors operate year-round in extremely high-temperature steam environments where standard-clearance bearings are highly prone to seizure due to thermal expansion. TFL 6224M/C4VL0241’s C4 extra-large clearance perfectly absorbs intense thermal stress conducted through the shaft, and the brass cage resists continuous vibration from the rolls. Meanwhile, its 3000V outer-ring insulation entirely resolves inverter-induced electrical erosion, making it the top choice for equipment overhauls in high-heat zones of paper mills.
In large centrifugal exhaust fans by Howden or TLT-Turbo used in cement and chemical plants, extreme exhaust heat is conducted directly along the shaft to the motor’s non-drive end, accompanied by high-frequency vibrations from airflow. Serving as a critical support node, TFL 6224M/C4VL0241 uses its brass structure to resist vibration fatigue and its C4 clearance to prevent temperature-induced seizure. Its VL0241 coating cuts off electrical corrosion from high-frequency PWM waves, ensuring stable exhaust operations for continuous production lines.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
